A water well drilling rig is a lightweight, efficient, and multifunctional drilling and drilling device powered by a diesel engine. It is mainly suitable for drilling water wells, agricultural irrigation wells, and other wells, and is especially suitable for water intake projects in mountainous areas and rocky strata.
| Model | YG-150 | YG-200 | YG-300 | YG-600 | YG-800 |
| Total weight (kg) | 4200 | 4500 | 7000 | 12000 | 13000 |
| Drilling diameter (mm) | 130-254 | 130-254 | 130-325 | 30-350 | 130-350 |
| Drilling depth (m) | 150 | 200 | 300 | 600 | 800 |
| One-time propulsion length (m) | 3.6 | 3.6 | 3.6 | 6.6 | 6.6 |
| Main unit power | 42kw | 58kw | 85kw | 132kw | 151kw |
| Working air pressure (mpa) | 1.7-2.5 | 1.7-2.5 | 1.7-3 | 1.7-3.5 | 1.7-3.5 |
| Gas consumption (m³/min) | 17-31 | 17-31 | 17-35 | 17-42 | 17-42 |
| Drill pipe diameter (mm) | Φ76 Φ89 | Φ76 Φ89 | Φ76 Φ89 Φ102 | Φ102 Φ108 Φ114 | Φ102 Φ108 Φ114 |
| Drill pipe length (m) | 1.5/2.0/3.0 | 1.5/2.0/3.0 | 1.5/2.0/3.0 | 3.0/6.0 | 3.0/6.0 |
| Boosting power (T) | 12 | 15 | 18 | 28 | 30 |

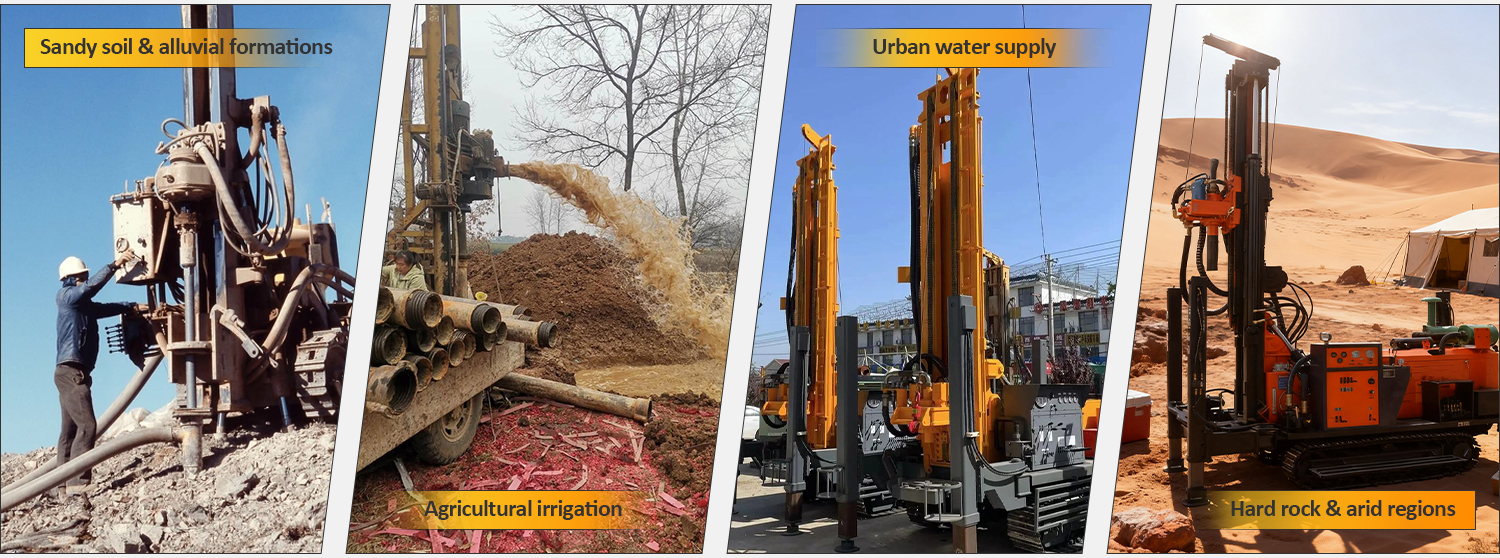

Geological Exploration
Well Drilling
Blasting Holes
Mine Exploration
